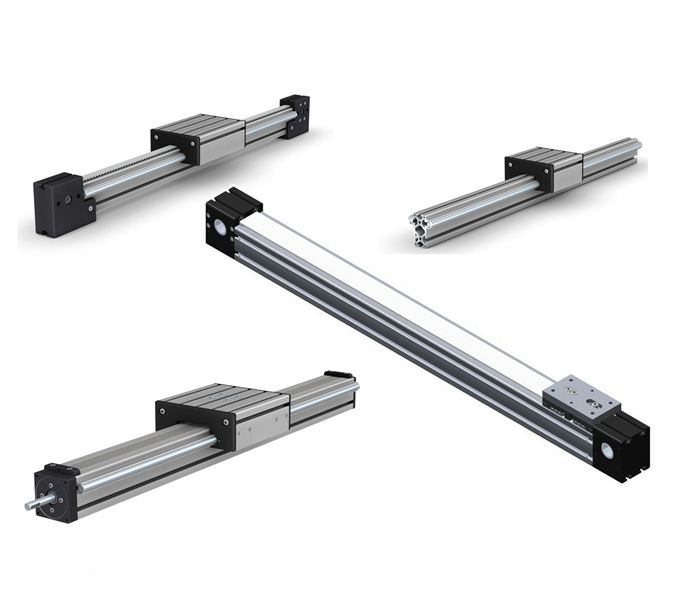

Find the perfect linear actuator quickly and accurately. The Product Search feature allows you to filter our comprehensive product table by critical technical specifications, ensuring you locate the ideal component for your application with ease.
1 2
Clear
Filter
Actuator Type

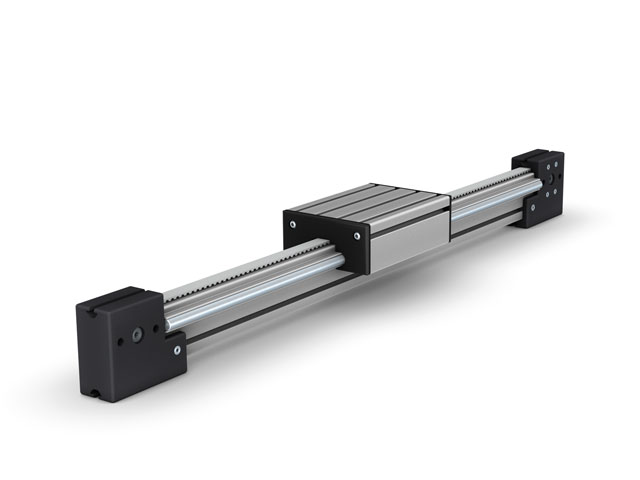

Belt Driven |

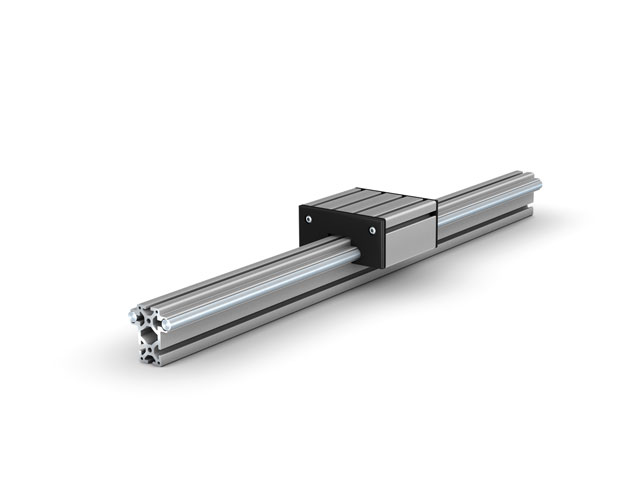

Linear Guide |

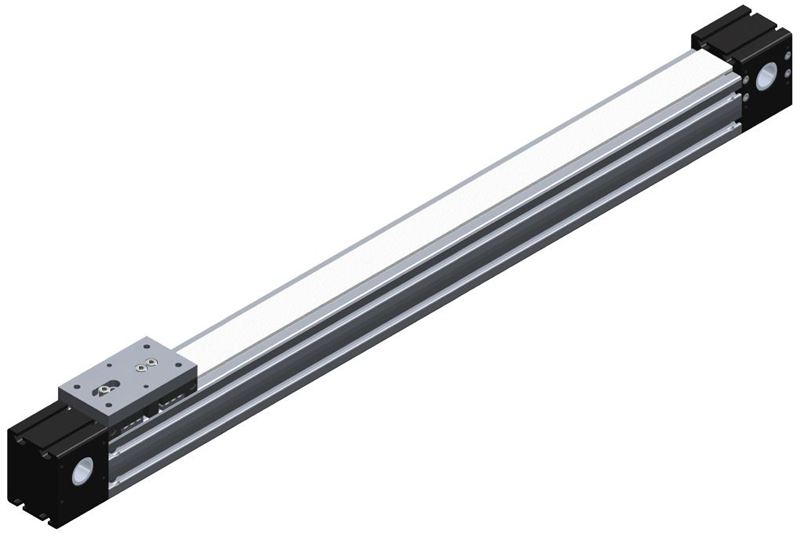

Pusher Drive |

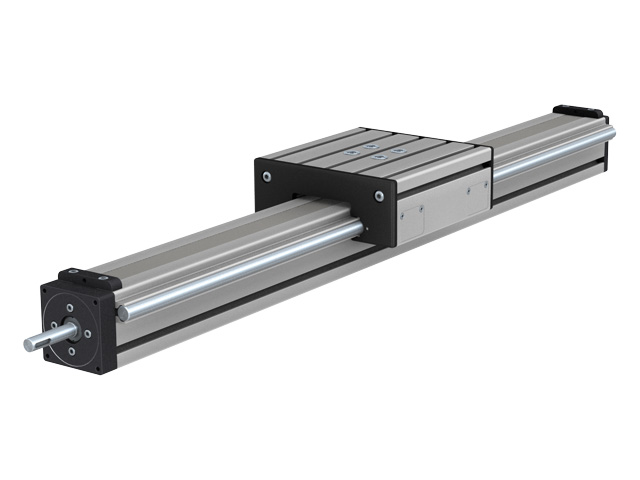

Screw Driven |
Max Static Radial Load (Y-direction) (N)
At Least:No More Than:
Available Range: 0 to 7900
Available Range: 0 to 7900
Max Static Axial Load (Z-direction) (N)
At Least:No More Than:
Available Range: 0 to 11050
Available Range: 0 to 11050
Max Static Moment Load (Mx-Roll) (N·m)
At Least:No More Than:
Available Range: 0 to 450
Available Range: 0 to 450
Max Static Moment Load (My-Pitch) (N·m)
At Least:No More Than:
Available Range: 0 to 1200
Available Range: 0 to 1200
Max Static Moment Load (Mz-Yaw) (N·m)
At Least:No More Than:
Available Range: 0 to 1300
Available Range: 0 to 1300
Minimum Track Length (mm)
At Least:No More Than:
Available Range: 75 to 660
Available Range: 75 to 660
Max Track Length (mm)
At Least:No More Than:
Available Range: 3300 to 18000
Available Range: 3300 to 18000
Item # |
Actuator Type |
Max Static Radial Load (Y-direction) |
Max Static Axial Load (Z-direction) |
Max Static Moment Load (Mx-Roll) |
Max Static Moment Load (My-Pitch) |
Max Static Moment Load (Mz-Yaw) |
Max Track Length |
|---|---|---|---|---|---|---|---|
| BTRU150 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 60 N·m | N/A 80 N·m | N/A 155 N·m | N/A 18000 mm |
| BTRU250 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 60 N·m | N/A 220 N·m | N/A 425 N·m | N/A 18000 mm |
| BTRU350 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 220 N·m | N/A 425 N·m | N/A 18000 mm |
| BTRU450 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 220 N·m | N/A 425 N·m | N/A 18000 mm |
| BTRU650 |
N/A
Belt Driven |
N/A 7900 N | N/A 3700 N | N/A 205 N·m | N/A 330 N·m | N/A 710 N·m | N/A 18000 mm |
| BTRU800 |
N/A
Belt Driven |
N/A 7900 N | N/A 3700 N | N/A 280 N·m | N/A 405 N·m | N/A 870 N·m | N/A 18000 mm |
| BTRR350 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 220 N·m | N/A 425 N·m | N/A 18000 mm |
| BTRR450 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 220 N·m | N/A 425 N·m | N/A 18000 mm |
| BTRR800 |
N/A
Belt Driven |
N/A 7900 N | N/A 3700 N | N/A 280 N·m | N/A 405 N·m | N/A 870 N·m | N/A 18000 mm |
| BTSU10 |
N/A
Belt Driven |
N/A 56 N | N/A 110 N | N/A 9 N·m | N/A 6 N·m | N/A 6 N·m | N/A 18000 mm |
| BTSU1000 |
N/A
Belt Driven |
N/A 5700 N | N/A 11050 N | N/A 450 N·m | N/A 1200 N·m | N/A 1000 N·m | N/A 18000 mm |
| BTRO150 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 60 N·m | N/A 355 N·m | N/A 655 N·m | N/A 18000 mm |
| BTRO250 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 355 N·m | N/A 655 N·m | N/A 18000 mm |
| BTRO350 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 355 N·m | N/A 655 N·m | N/A 18000 mm |
| BTRO650 |
N/A
Belt Driven |
N/A 3900 N | N/A 2000 N | N/A 200 N·m | N/A 710 N·m | N/A 1300 N·m | N/A 18000 mm |
| CTRU10 |
N/A
Belt Driven |
N/A 0 N | N/A 160 N | N/A 0 N·m | N/A 4 N·m | N/A 0 N·m | N/A 6000 mm |
| CTRU25 |
N/A
Belt Driven |
N/A 0 N | N/A 200 N | N/A 0 N·m | N/A 8 N·m | N/A 0 N·m | N/A 6000 mm |
| CTRU50 |
N/A
Belt Driven |
N/A 0 N | N/A 400 N | N/A 0 N·m | N/A 15 N·m | N/A 0 N·m | N/A 6000 mm |
| NGSU20 |
N/A
Pusher Drive |
N/A 0 N | N/A 0 N | N/A 0 N·m | N/A 0 N·m | N/A 0 N·m | N/A 18000 mm |
| NGSU60 |
N/A
Pusher Drive |
N/A 0 N | N/A 0 N | N/A 0 N·m | N/A 0 N·m | N/A 0 N·m | N/A 18000 mm |
| NGSU120 |
N/A
Pusher Drive |
N/A 0 N | N/A 0 N | N/A 0 N·m | N/A 0 N·m | N/A 0 N·m | N/A 18000 mm |
| BARU250E |
N/A
Screw Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 80 N·m | N/A 155 N·m | N/A 3300 mm |
| BARU250G |
N/A
Screw Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 80 N·m | N/A 155 N·m | N/A 3300 mm |
| BARU350E |
N/A
Screw Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 140 N·m | N/A 270 N·m | N/A 3300 mm |
| BARU350G |
N/A
Screw Driven |
N/A 3900 N | N/A 2000 N | N/A 100 N·m | N/A 140 N·m | N/A 270 N·m | N/A 3300 mm |
